Fjernbetjeningskonsol (komplet) til Hidea 115HK
Fjernbetjeningskonsol (komplet) til Hidea 115HK
OBS: Ifølge vores handelsbetingelser er der ingen returret på elektriske dele og ledninger, da disse betragtes som slid- og sikkerhedskomponenter. Vi kan desværre ikke kontrollere, om en elektrisk del har været tilsluttet eller overbelastet under test.

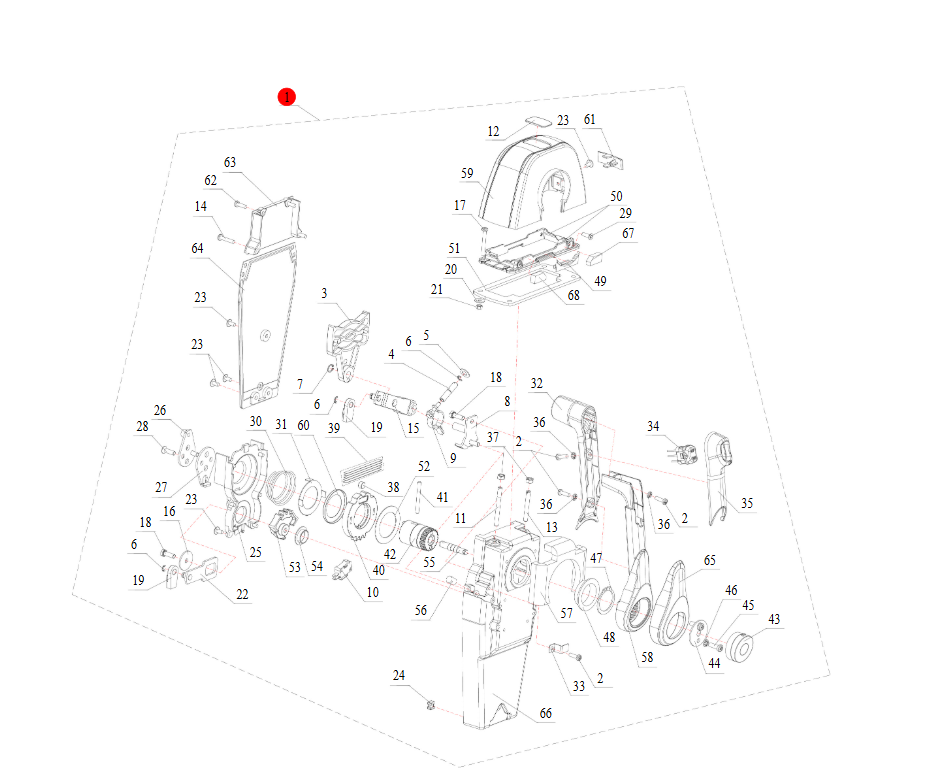

Inhold
2. Cross Screw
3. Shift Seat
4. Adjusting Screw
5. Shim
6. Circlip
7. Circlips for Shafts
8. Locking Clamp Bracket
9. Locking Clamp
10. Neutral Switch Comp.
11. Reversing Limit Bolt(L)
12. Remote Control Box Logo Plate
13. Forward Gear Limit Stud
14. Cross Screw
15. Throttle Control Arm
16. Gasket
17. Cross Screw
18. Hexagon Head Bolt
19. Cable Adjustor B
20. Flat pad
21. Hex Nut
22. Shift Control Arm
23. Cross Screw
24. Wire Harness Sealing Seat
25. Gearbox Mounting Cover
26. Drive Plate
27. Gear Controller
28. Cross Screw
29. Cross Screw
30. Accelerator Spring
31. Locking Plate
32. Joystick Handle (long)
33. Wire Fixing Clip
34. Trim Stwitch Assy.
35. Trim Switch Panel
36. Washer,Inner Gear
37. Hex Nut
38. Gear Limit Column
39. Spring Steel Plate
40. Main Gear
41. Limit Pin Shaft
42. Drive Gear
43. Free Acceleration Button Cap
44. Acceleration Axis Limit Plate
45. Cross Screw
46. Washer,Inner Gear
47. Circlip
48. Drive Gear Bushing
49. Joystick Baffle
50. Gear Baffle
51. Remote Control Box Damper Pad
52. Gear Antifriction Disc
53. Secondary Gear
54. Secondary Gear Bushing
55. Free Acceleration Shaft
56. Rubber Plug
57. Antifriction Gasket(Centre)
58. Joystick
59. Cover
60. Pin Limit Pressure Plate
61. Adjusting Bolt Sealing Cover
62. Cross Screw
63. Upper Cover, Remote Control Box
64. Lower Cover, Remote Control Box
65. Joystick Decorative Cover
66. Remote Control Box Shell
67. Antifriction Gasket(Right)
